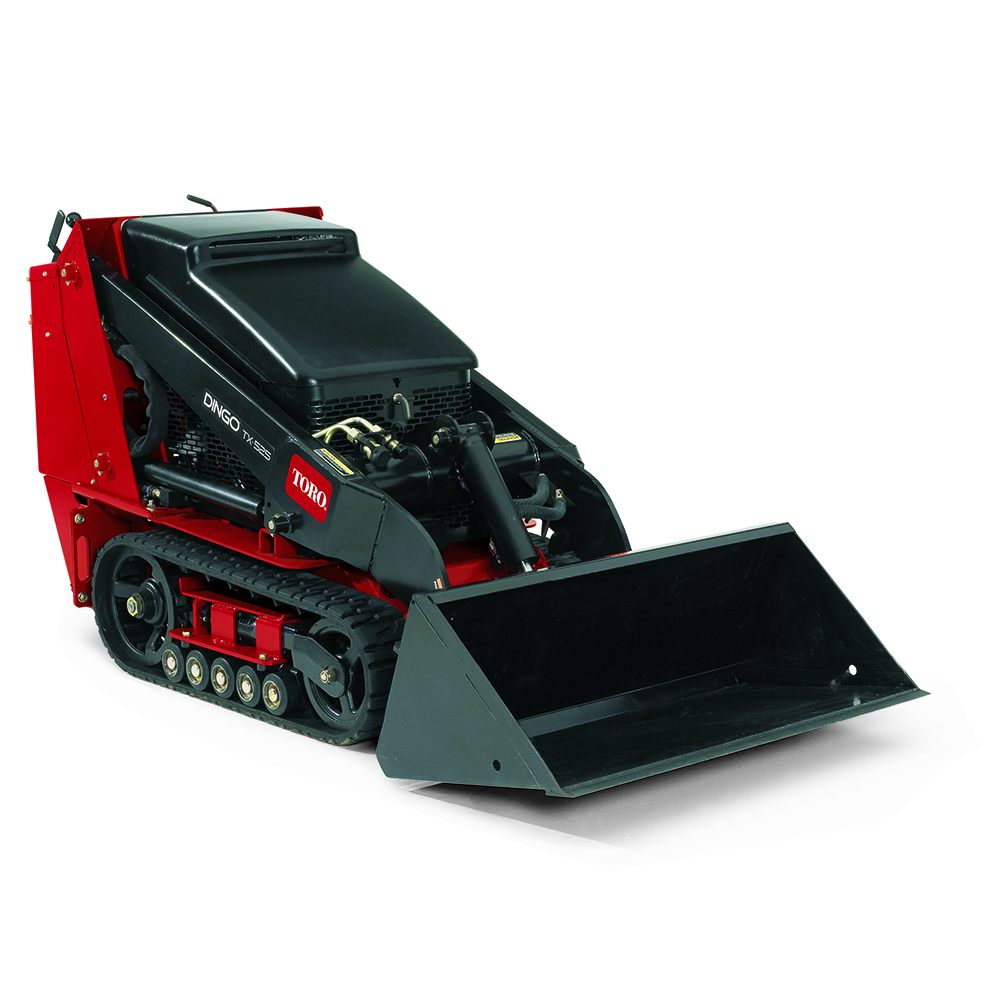

Light Materials Loader Bucket Attachment Toro Equipment
| Capacity Heaped |
8.6 ft³ (0.24 m³) |
| Capacity SAE Struck |
6.4 ft³ (0.18 m3) |
| Construction |
Fabricated, welded steel frame |
| Height |
18 in. / 45. 7 cm |
| Length |
26 in. / 66.0 cm |
| Models |
Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 427, Dingo TX 525, Dingo TX 700, eDingo 500 |
| Mounting Frame |
Dingo® quick-attach mount plate, fabricated, welded base |
| Quick Couplers |
Dripless, flush face quick couplers |
| Weight |
175 lbs / 79.4 kg |
| Width |
48 in. / 121.9 cm |
