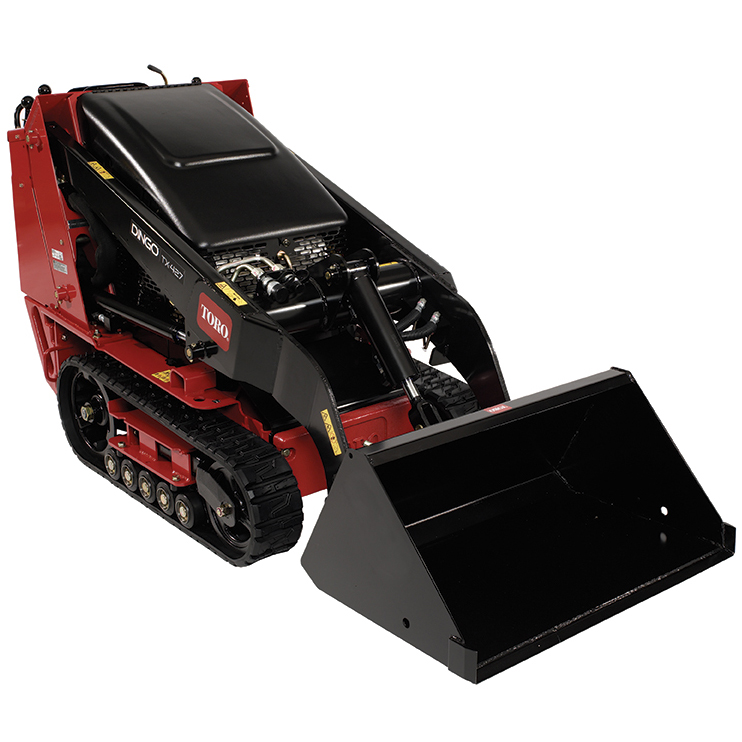

Narrow Loader Bucket Attachment Toro Equipment
| Capacity Heaped |
4.3 ft³ (0.12 m³) |
| Capacity SAE Struck |
3.5 ft³ (0.10 m³) |
| Construction |
Fabricated, welded steel frame |
| Height |
25 in. / 63.5 cm |
| Length |
27 in. / 68.5 cm |
| Models |
Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700, eDingo 500 |
| Mounting Frame |
Dingo® quick-attach mount plate, fabricated, welded base |
| Quick Couplers |
Dripless, flush face quick couplers |
| Weight |
153 lbs / 69.4 kg |
| Width |
35 in. / 88.9 cm |
