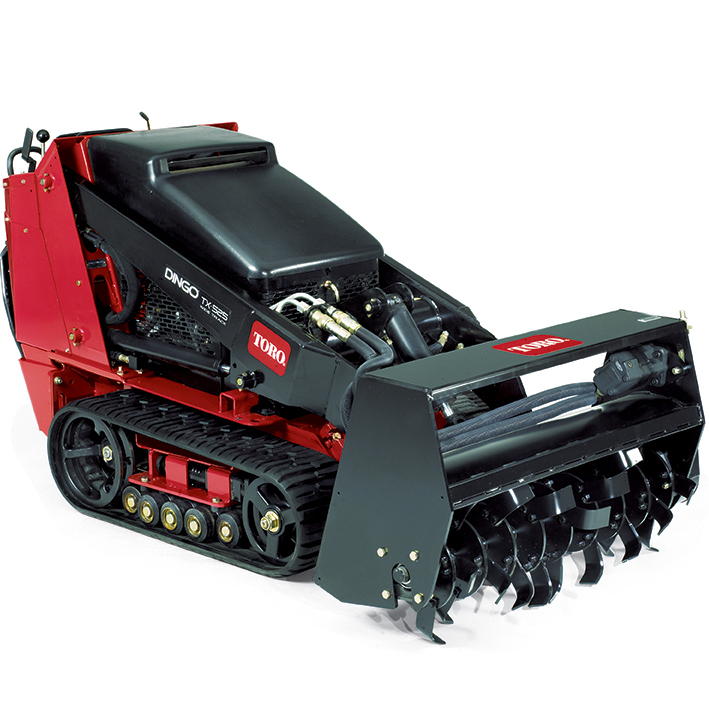

Tiller Attachment Toro Equipment
| Construction | Fabricated, welded steel frame |
|---|---|
| Height | 26 in. / 66.0 cm |
| Length | 20 in. / 50.8 cm |
| Models | Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700 |
| Mounting Frame | Dingo® quick-attach mount plate, fabricated, welded base |
| Number of Tine Heads | 36 |
| Quick Couplers | Dripless, flush face quick couplers |
| Shaft | 1.5 in. / 3.8 cm |
| Tine Speed | Max: 245 rpm @ 3600 engine rpm (flow divider @ 9 o’clock position) Recommended:225 rpm @ 3600 engine rpm (flow divider @ 10 o’clock position) |
| Weight | 363 lbs / 165 kg |
| Width | 44 in. / 111.8 cm |
| Working Depth | 6 in. / 15.2 cm |
| Working Width | 40 in. / 101.6 cm |
Details
- Hydraulically variable ground speed
- Hardened tines for maximum life
- Reversible tiller direction
- Equipment Type
- Compact Utility Attachments
