Snorkel 460SJ Snorkel

Max. working height
52 ft
Max. platform height
46 ft
Max. horizontal reach
42 ft
Platform size
8 ft x 3 ft
Overall width
7 ft 7 in
Transport Width
6 ft 10 in
Transport Length
21 ft 6 in
Transport Height
9 ft 6 in
Stowed height
7 ft 10 in
Ground clearance
12.5 in
Platform capacity – unrestricted
600 lbs
Platform capacity – restricted
1,000 lbs
Max. drive height
46 ft
Max. wind speed
28 mph
Max. drive speed (elevated)
0.75 mph
Max. drive speed (stowed)
4.0 mph
Raise / lower time
64 / 64 seconds
Gradeability
50%
Jib length
5 ft 6 in
Jib arc
135°
Platform rotation
150°
Superstructure rotation
360° continuous
Tailswing
35.5 in
Inside turning radius
9 ft 10 in
Outside turning radius
16 ft 7 in
Tires
355/55 D625 foam filled lug
Controls
All proportional controls
Drive system
4 wheel drive
Power source
Kubota 24.9hp (18.6kW) diesel Tier 4 Final
Auxiliary power unit
12V DC
Weight
17,260 lbs

  • Snorkel Guard™ secondary guarding system
  • 5ft 6in 135º jib
  • Oscillating axle
  • Hydraulic platform rotation
  • Hydraulic oil cooler
  • Four wheel drive
  • All proportional controls
  • Swing-out engine tray
  • Hour meter & on-board diagnostics display
  • Power line to platform
  • Tilt alarm & cut-out
  • DC emergency operation
  • Tri-entry platform
  • Flashing amber light
  • Platform overload system
  • 2 year parts & labor, 5 year structural warranty
  • Special paint colors
  • AC generator 110V/2.5kW
  • Non-marking tires
  • Air-filled flotation tires
  • Dual fuel
  • Airline to platform
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Tow kit
  • Glazier package
  • 7.5kW generator package
  • Environmental hydraulic oil
  • Tool tray
  • Pipe rack
  • Snorkel OnSite™ telematics

Snorkel 460SJ Working Envelope Imp

Details

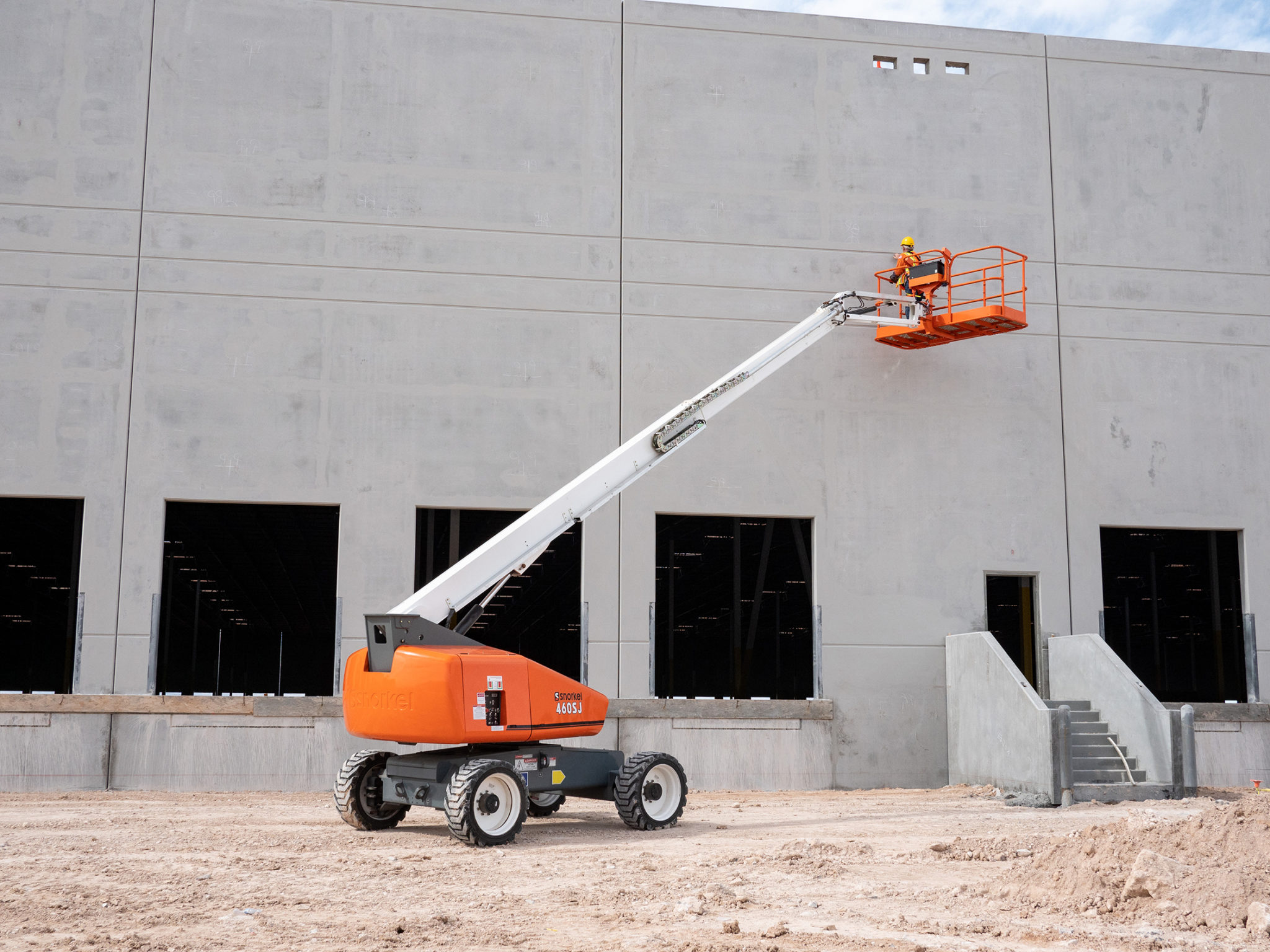

The Snorkel 460SJ mid-sized telescopic boom lift was built to handle rough terrain. Fully proportional hydraulics deliver power and precision, and a jib offers flexibility on the job. The 460SJ also features powerful 4-wheel drive, minimal tailswing and 50% gradeability.

Equipment Type
Aerial Lifts / Telescopic Booms
