Snorkel TM16E Snorkel

  Back to Inventory

Max. working height
22 ft
Max. platform height
43 ft
Platform size (stowed)
27 in x 39 in
Platform size (extended)
27 in x 59 in
Deck extension length
20 in
Overall length
4 ft 6 in
Overall width
2 ft 6 in
Stowed height
6 ft 6 in
Ground clearance
3 in
Platform capacity (SWL)
500 lbs
Max. drive height
16 ft
Max. wind speed
0 mph
Max. drive speed (elevated)
0.3 mph
Max. drive speed (stowed)
2.5 mph
Raise / lower time
12.5 / 10.5 seconds
Gradeability
25%
Max. operating slope (side to side)
1.5°
Max. operating slope (front to back)
1.5º
Inside turning radius
0 in
Outside turning radius
55.5 in
Tires
12.7 in non-marking rubber
Controls
Proportional
Parking brake
2 wheel, spring-applied, electric release
Drive system
Dual DC motors
Power source
24V 220Ah batteries
Battery charger
20 amp
Weight
2,430 lbs

  • Roll-out deck extension
  • Proportional controls
  • Saloon-door style entry gates
  • Descent & tilt alarms
  • Emergency lowering at chassis controls
  • Non-marking rubber tyres
  • Crane lift points
  • Horn
  • 2 persons indoor
  • 1 person outdoor (TM12E only)
  • Selectable motion alarm
  • Integrated battery charger 110V 20A
  • Hour meter & on-board diagnostics display
  • 2 year parts & labour, 5 year structural warranty
  • Special paint colours
  • Environmental hydraulic oil
  • Order picker tray
  • Snorkel OnSite™ telematics

Snorkel TM12E/TM16E Turning Radius

Details

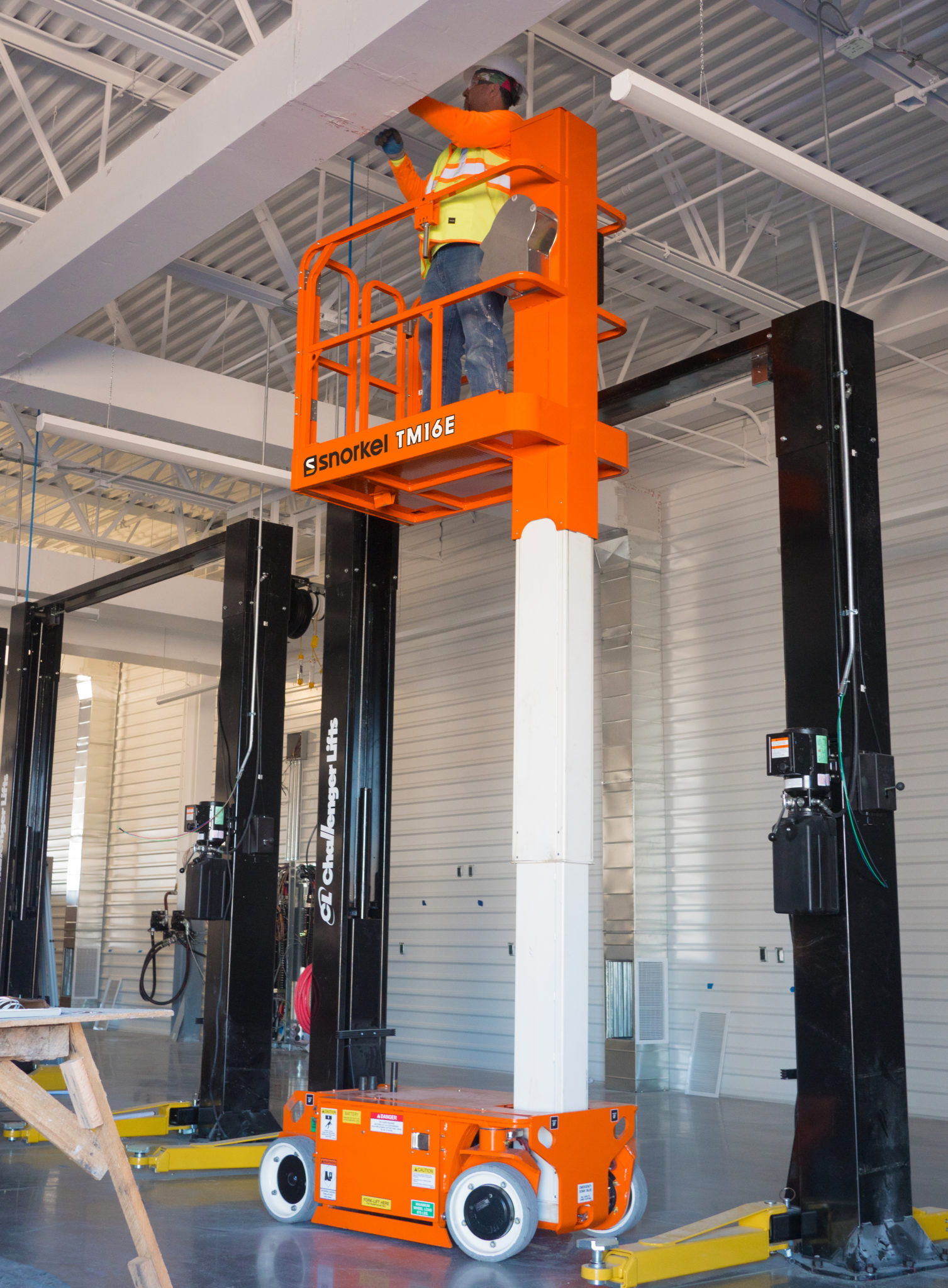

The Snorkel TM16E delivers the tallest working height in Snorkel’s line of self-propelled telescopic mast lifts. Featuring an electric drive system, this mast lift offers longer duty cycles on the job. Smooth proportional controls allows for precise positioning where needed most.

Equipment Type
Aerial Lifts / Vertical Mast Lifts
