Snorkel SL26RT Snorkel
Max. working height
31 ft 6 in
Max. platform height
25 ft 6 in
Platform size (stowed)
5 ft 8 in x 12 ft
Platform size (extended)
5 ft 8 in x 15 ft
Overall length
12 ft 5 in
Overall width
7 ft
Min. height (guardrails folded)
65 in
Stowed height
8 ft 6 in
Axle ground clearance
7.6 in
Chassis ground clearance
65 in
Platform capacity (SWL)
1,500 lbs
Max. drive height
25 ft 6 in
Max. wind speed
28 mph
Max. drive speed (elevated)
0.5 mph
Max. drive speed (stowed)
4.0 mph
Raise / lower time
21/32 sec
Gradeability
50%
Max. leveling (front to rear)
9°
Max. leveling (side to side)
13°
Inside turning radius
12 ft 10 in
Outside turning radius
18 ft 6 in
Tires
26 x 12.00 – 12 foam filled
Controls
Proportional joystick
Drive system
4 wheel drive with hydraulic motors & flow dividers
Power source
Kubota D-902 water-cooled diesel engine – Tier 4 Final
Weight
7,826 lbs
- Automatic powered platform leveling
- Powerful 4 wheel drive
- Oscillating front axle
- Roll-out deck extension
- Descent alarm
- High grip, all-terrain tires
- Dual multi-disc brakes
- Proportional controls
- Flashing amber light
- Power line to platform
- Fold-down guardrails
- All motion alarm
- Hour meter & on-board diagnostics display
- Horn
- 2 year parts & labor, 5 year structural warranty
- Special paint colors
- Diesel exhaust scrubber
- Flashing amber light
- Tunnel package
- Environmental hydraulic oil
- Hydraulic generator 110/240V 2kW
- Platform overload system
- Non-marking tires
- Aluminum platform floor
- Extreme environment package
- Snorkel OnSite™ telematics
Details

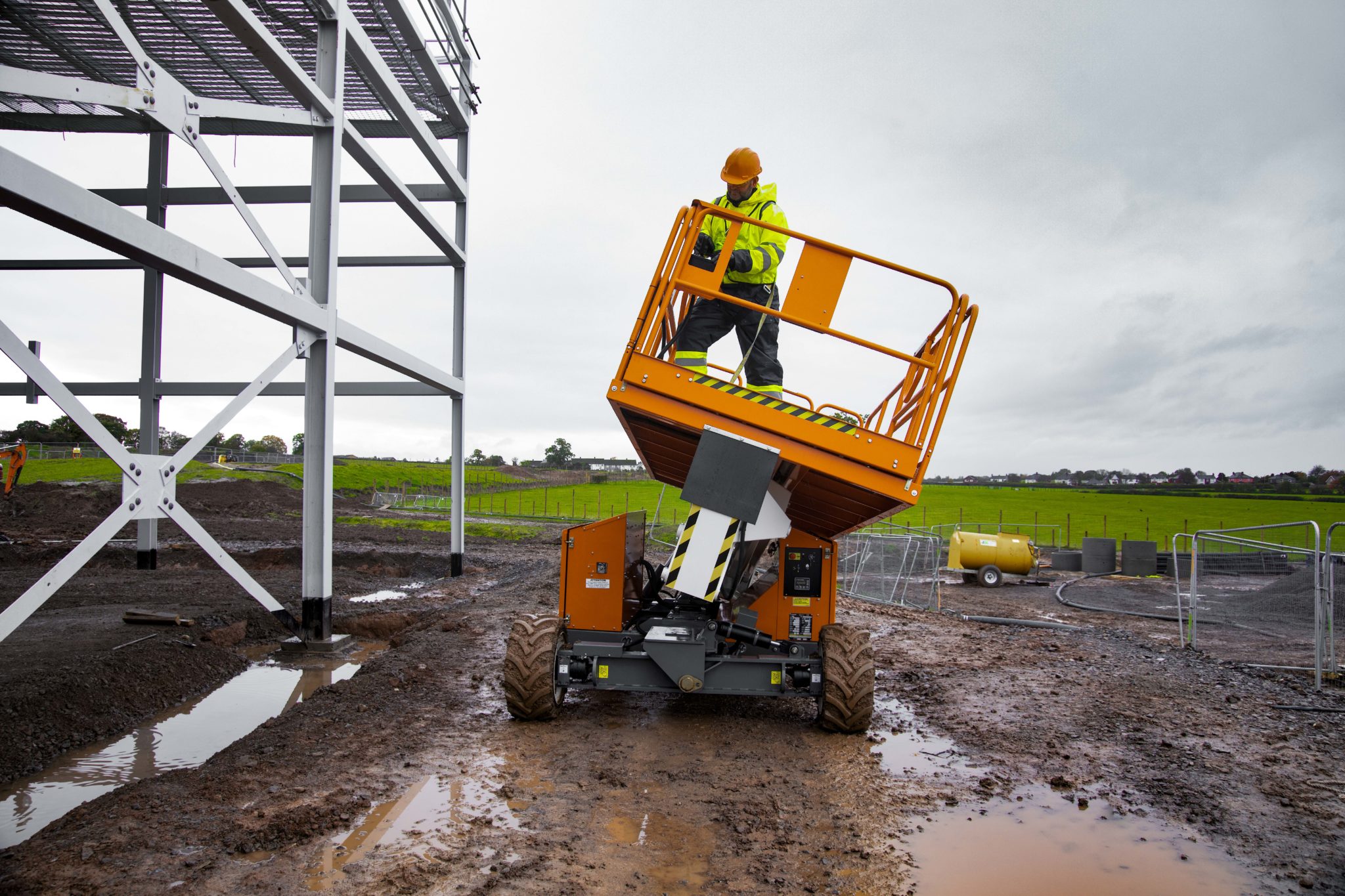

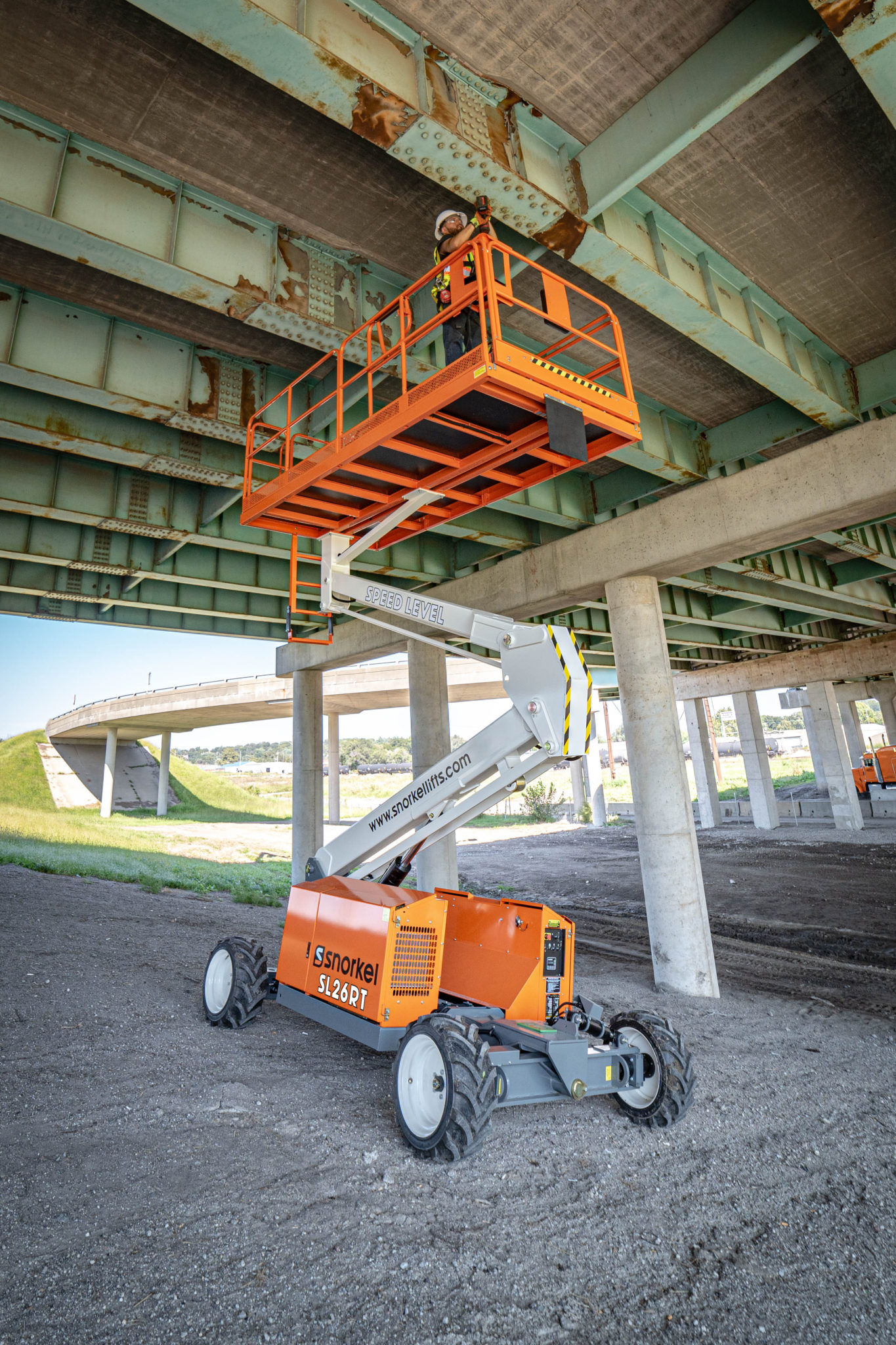

The Snorkel SL26RT Speed Level is the original sigma boom lift. Climbing gradients up to 50% and featuring automatic self-leveling without outriggers, it offers superior stability. This Speed Level also features an extension deck for additional outreach. With superb ground clearance and powerful 4-wheel drive, the SL26RT can handle any jobsite.
- Equipment Type
- Aerial Work Platforms / Aerial Lifts / Rough-Terrain
