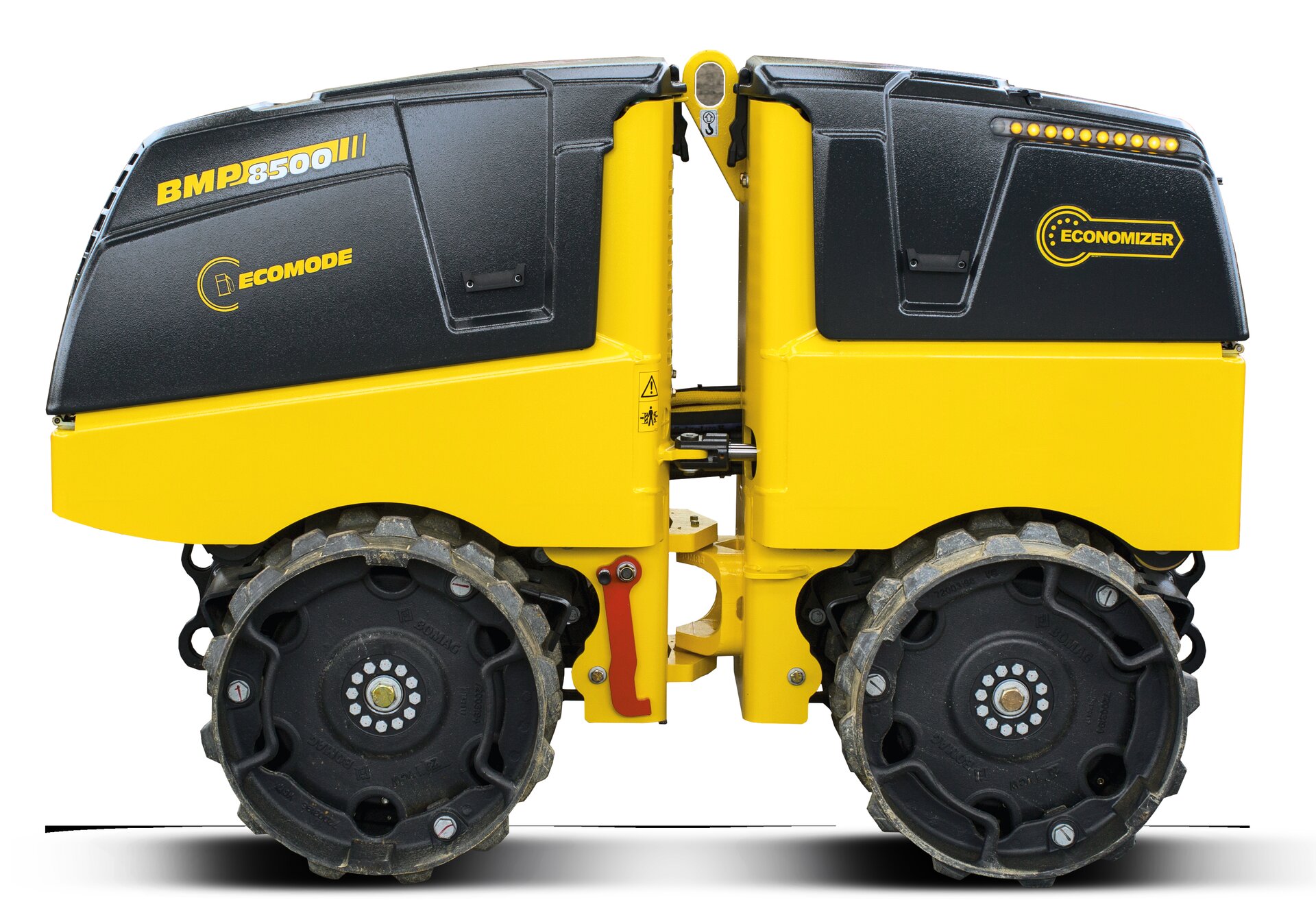

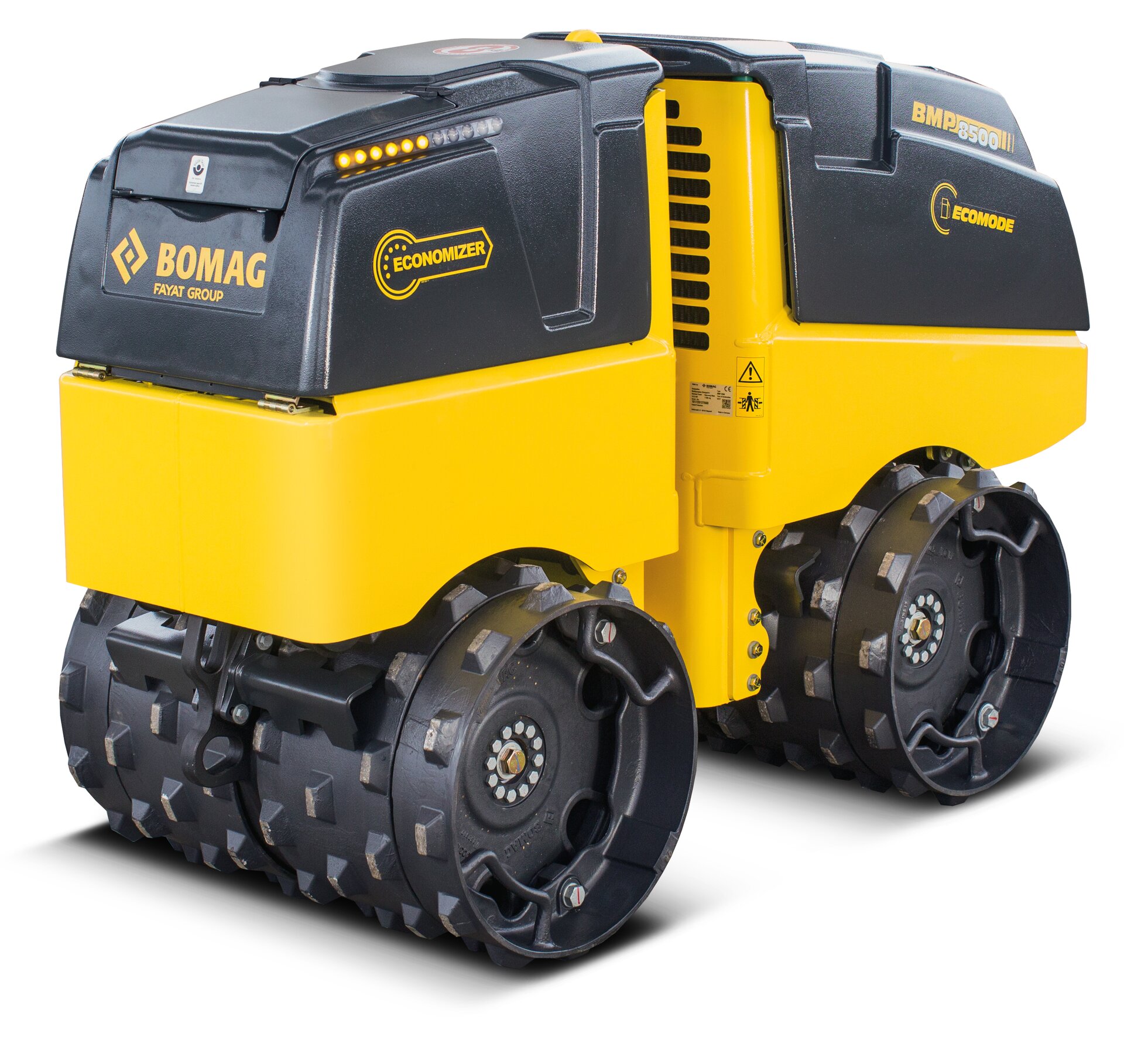

BMP 8500 Roller BOMAG
Standard Equipment
ECOMODE
Drum extensions (24/33.5in)
Hydrostatic articulated steering, maintenance-free
Combination remote control cable/radio
Dual directed-vibration system
Two travel speed ranges
2 amplitudes
Intelligent Vibration Control (IVC)
Electric starter
BOMAG Operator Safety System
2 scrapers per drum
Battery disconnect switch
Automatic shutdown at low oil level
Automatic engine shut down at a lateral tipping angle of 45°
Full prot. hoods made of impact resistant compound material
Single-point lifting device
Lockable engine cover and dash board
Easy Service Concept
-Diagnostic module with fault code display
-Hour meter
-foldable full protection hood
3-2-1 Warranty
Optional Equipment
Environmentally compliant hydraulic oil
Smooth drum (-99.2lb Amplitude 0.06/0.03in)
Special painting
Mobile quick charger
Scrapers 24/33.5in
Service Kit
ECONOMIZER
TOUGH WARRANTY
Technical Data
Weights
Operating weight CECE ……………………………………. 3,516 lbs.
Basic weight ……………………………………………………. 3,494 lbs
Average axle load CECE ………………………………….. 1,758 lbs.
Driving Characteristics
Speed (1), forward …………………………………………… 0.7 mph
Speed (1), reverse …………………………………………… 0.7 mph
Speed (2), forward ……………………………………………1.8 mph
Speed (2), reverse …………………………………………… 1.8 mph
Max. gradeability without/with vibr. ……………………..55/45%
Drive
Engine manufacturer ………………………………………… Kohler
Type ……………………………………………………………….KDW 1003
Emission stage ………………………………………………… Stage v / Tier 4f
Cooling …………………………………………………………… Water
Number of cylinders …………………………………………. 3
Performance ISO 3046 …………………………………….. 17.2 hp
Speed …………………………………………………………….. 2,600 rpm
Fuel ……………………………………………………………….. Diesel
Drive system …………………………………………………… Hytrost.
Driven drum ……………………………………………………. 4
Fuel consump. aver. during operation ……………….. 0.8 gal/h
Brakes
Service brake ………………………………………………….. hydrost.
Parking brake ………………………………………………….. hysdromec.
Exciter system
Vibrating drum …………………………………………………. front & rear
Drive system …………………………………………………… hydraulic
Frequency ………………………………………………………. 2,500.0/2,520.0 vpm
Amplitude ……………………………………………………….. 0.044/0.022 in
Centrifugal force ………………………………………………. 16,186/8,093 lbs
Capacities
Fuel ……………………………………………………………….. 6.3 gal.
Details

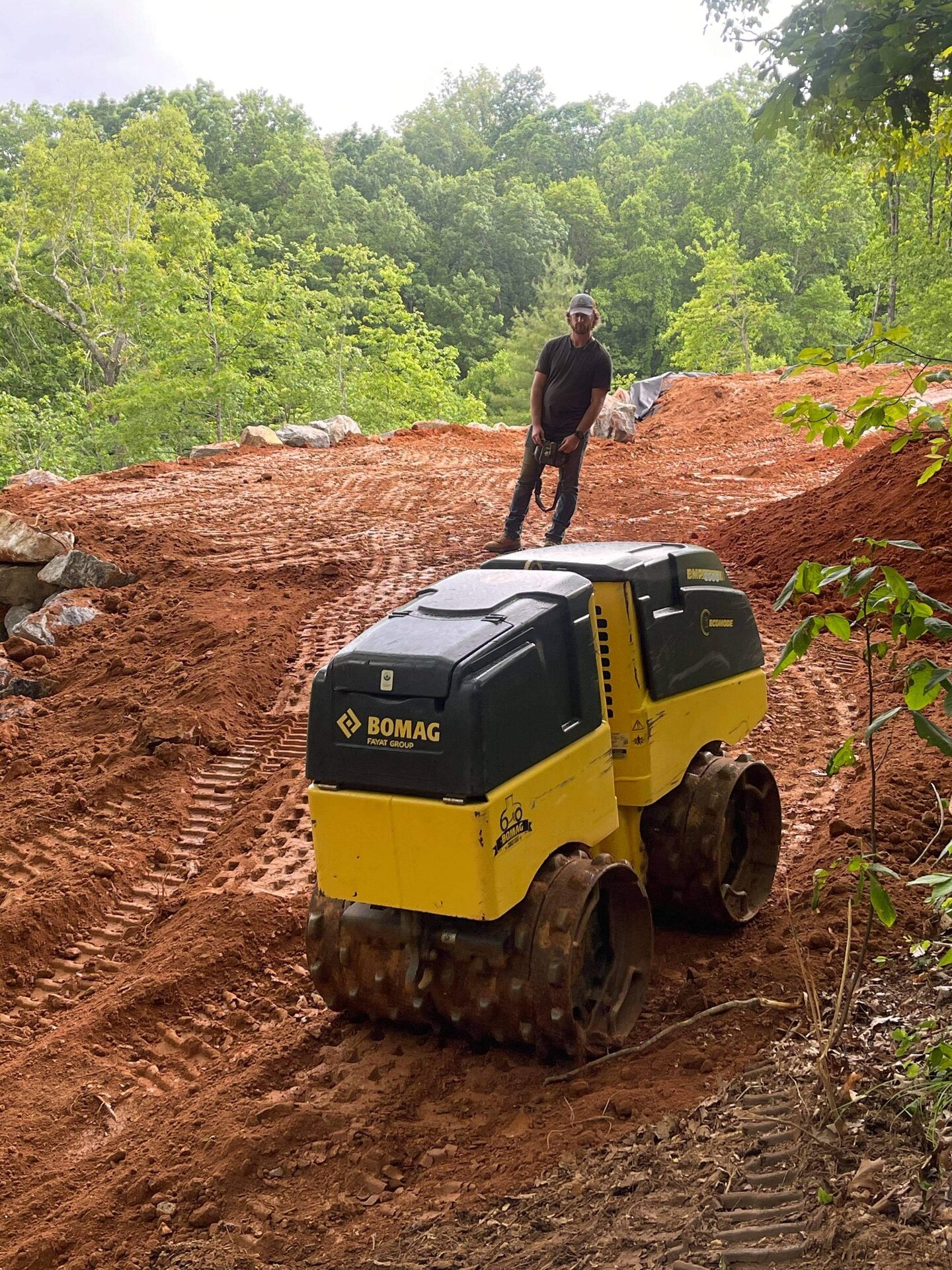

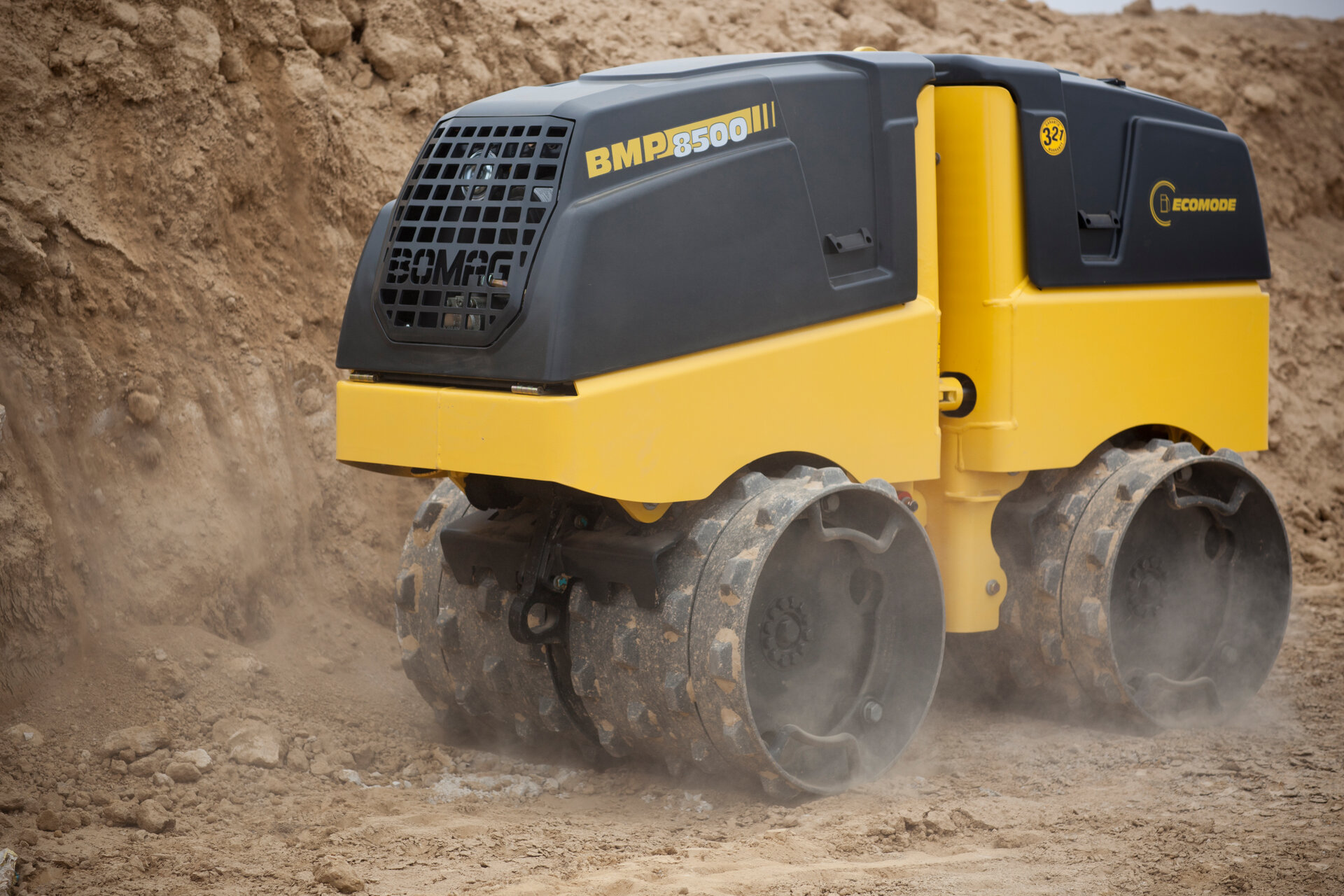

Multi-purpose radio-controlled compactor. Outstanding results in confined and dangerous conditions. Trench / MP roller, 3,516 lbs. operating weight, 16,186 lbs. centrifugal force, 33.5″ drums, combination cable / radio remote control.
