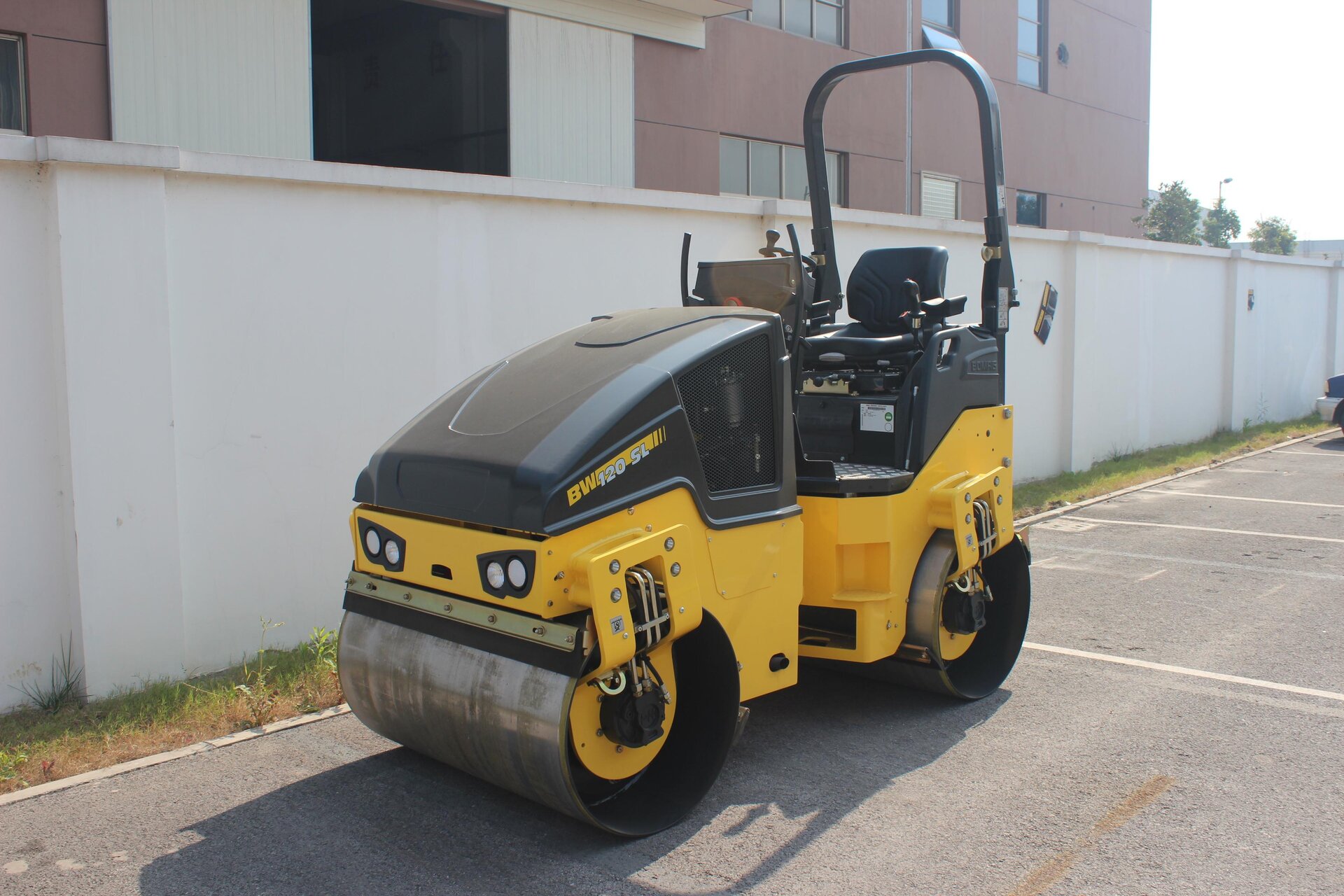

BW 120 SL-5 Roller BOMAG
Technical Data
BOMAG BW 120 SL-5
Weights
Operating weight w. ROPS CECE ……………………… 5,512 lb
Average static linear load CECE ………………………… 58.3 lb/in
Grossweight ……………………………………………………. 6,393 lb
Dimensions
Working width …………………………………………………. 47.2 in
Track radius, inner …………………………………………… 96.5 in
Driving Characteristics
Speed …………………………………………………………….. 0-5.6 mph
Working speed with vibration …………………………….. 0-3.1 mph
Max. gradeability without/with vibr. …………………….. 40/30%
Drive
Engine manufacturer ………………………………………… Kubota
Type ……………………………………………………………….D 1703 DI
Emission stage ………………………………………………… Stage V / TIER4f
Cooling …………………………………………………………… water
Number of cylinders ………………………………………….3
Performance ISO 14396 …………………………………… 24.8 hp
Performance SAE J 1995 …………………………………. 25.0 hp
Speed …………………………………………………………….. 2,200 rpm
Electric equipment …………………………………………… 12 V
Driven drum ……………………………………………………. front + rear
Brakes
Service brake ………………………………………………….. hydrost.
Parking brake …………………………………………………..hydromech.
Steering
Steering system ………………………………………………. oscil. artic.
Steering method ……………………………………………….hydrost.
Steering / oscillating angle +/- …………………………….32/20.0 degrees
Crab walk ……………………………………………………….. 0-2.0 in
Exciter system
Vibrating drum …………………………………………………. front + rear
Drive system …………………………………………………… hydrost.
Frequency ………………………………………………………. 32/10.0 degrees
Amplitude ……………………………………………………….. 0.020 in.
Centrifugal force ………………………………………………. 8,992/2,023 lb
Sprinkler System
Type of sprinkling …………………………………………….. pressure
Capacities
Fuel ……………………………………………………………….. 9.2 gal.
Water ……………………………………………………………..43.6 gal.
Standard Equipment
Hydrostatic travel and vibration drive
Travel drive in series
2 scrapers per drum, spring loaded and
tiltable
Pressure sprinkler system with interval
switch
Multi-function travel lever
Multi-function display incl. operating hour
meter
Water level
Emergency STOP
Individual control, vibration
Intelligent Vibration Control (IVC)
Integrated storage compartment
Adjustable operator’s seat
Seat contact switch
Vandalism protection
12V socket
Working lights front and rear
Back-up alarm
Lashing eyes, galvanized
Single-point lifting device
Lockable engine hood made of composite material
Optional Equipment
Foldable ROPS incl. seat belt
Sun roof, foldable with ROPS
Sliding seat incl. double travel lever
ECONOMIZER with asphalt temperature
display
BOMAG TELEMATIC
Indicator and hazard lights
Rotary beacon
Battery disconnect switch
Theft protection
Pointer
Special painting
ECOSTOP
Anti-frost intake
Tablet holder set
JOBLINK measuring technology interface
JOBLINK Bluetooth adapter
BOMAP GPS antenna holder
Details
Light tandem rollers for soil and asphalt patching. Ideal for footpaths, landscaping and finish road work. Double drum asphalt roller, Duetz D2.2, 47.2″ working width, articulated, vibrating drums, 5,622 lbs. operating weight.
